    SH800S Cell Sorter


    Sorting Made SimpleTM

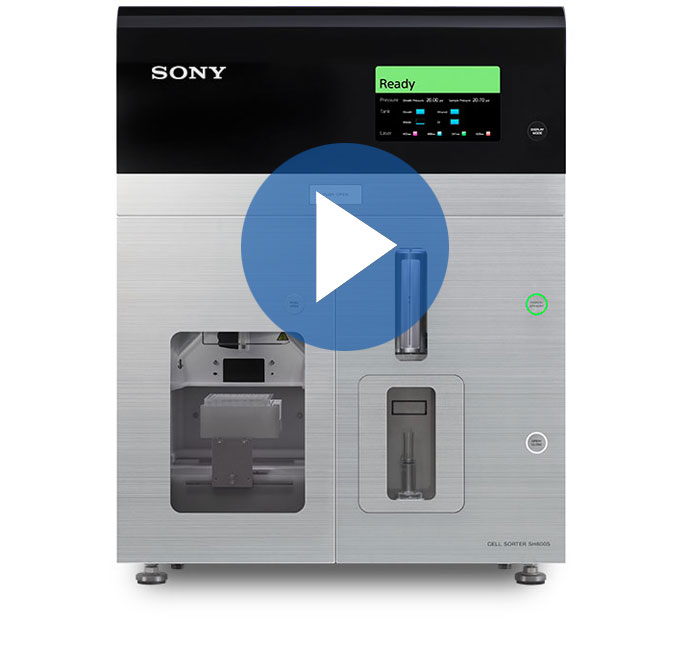

    The benchtop SH800S cell sorter permits sorting of a wide range of cell sizes and applications using the 70 μm, 100 μm, and 130 μm microfluidics sorting chips. This novel, chip-based design is fully integrated with comprehensive fluidics controls and advanced automation for set-up, acquisition, sort and analysis to make sorting less subjective, more precise and easier to use.

    System software is intuitive and supports sorting into tubes and 96- and 384-well plates. The software generates FCS 3.0 and FCS 3.1 files that also can be exported to third party analysis tools.

    SH800S is flexible and can support a variety of applications for individual and core labs. For applications where cross-contamination is a concern, optional e-beam sterilized consumables can be used to replace sample line and sorting chip.

    An optional class A2 Level II biosafety cabinet provides protection for personnel and products. The biosafety cabinet was custom designed for the SH800S and tested by the Baker Company to meet many international standards.

    The optical design offers up to 4 collinear excitation lasers (488 nm, 405nm, 561nm and 638nm) and 6 fluorescence detectors. The six free-form PMTs enable detection of fluorescence signals from any laser based on filter selection.
